Safety Systems

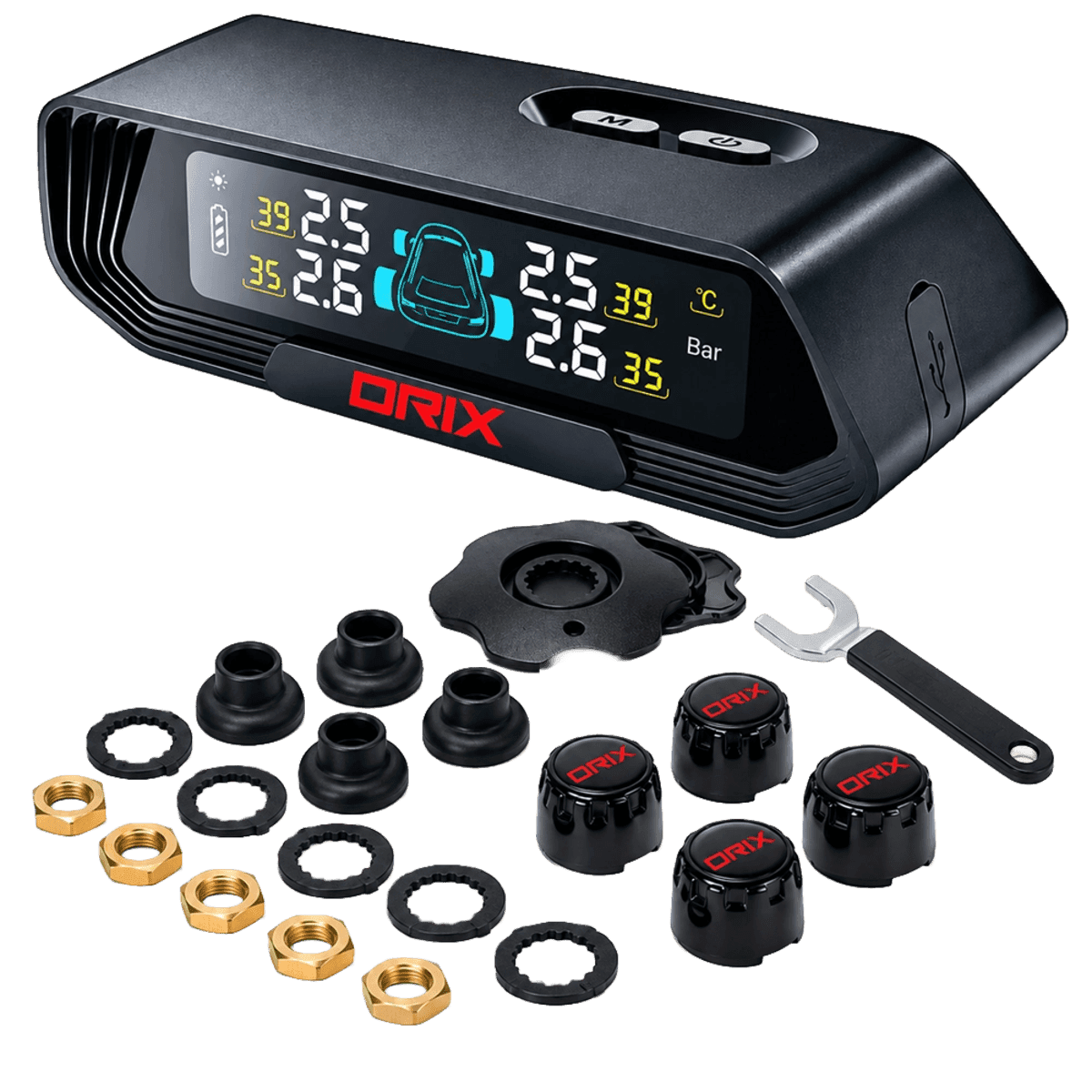

External TPMS
External TPMS provides real-time monitoring of tyre pressure and temperature for enhanced driving safety and reliability.
Technical Specifications & Features
- Storage Temperature: -40°C ~ +125°C
- Operating Temperature: -40°C ~ +105°C
- Operating Voltage: 2.2 ~ 3.3V
- Battery: CR2032 (3V)
- Average Operating Current: ≤1.5µA
- Peak Transmission Current: ≤9mA
- Battery Life: ≥5 Years
- Transmission Centre Frequency: 433.92MHz ±0.15MHz
- Transmission Power: ≥-25 dBm
- Pressure Measurement Range: 0 ~ 8 Bar
- Pressure Accuracy: ±0.1 Bar (0 ~ 4 Bar) @ 0 ~ 50°C
- Pressure Accuracy: ±0.2 Bar (4 ~ 8 Bar) @ 0 ~ 50°C
- Temperature Accuracy: ±3°C @ -20 ~ 70°C
